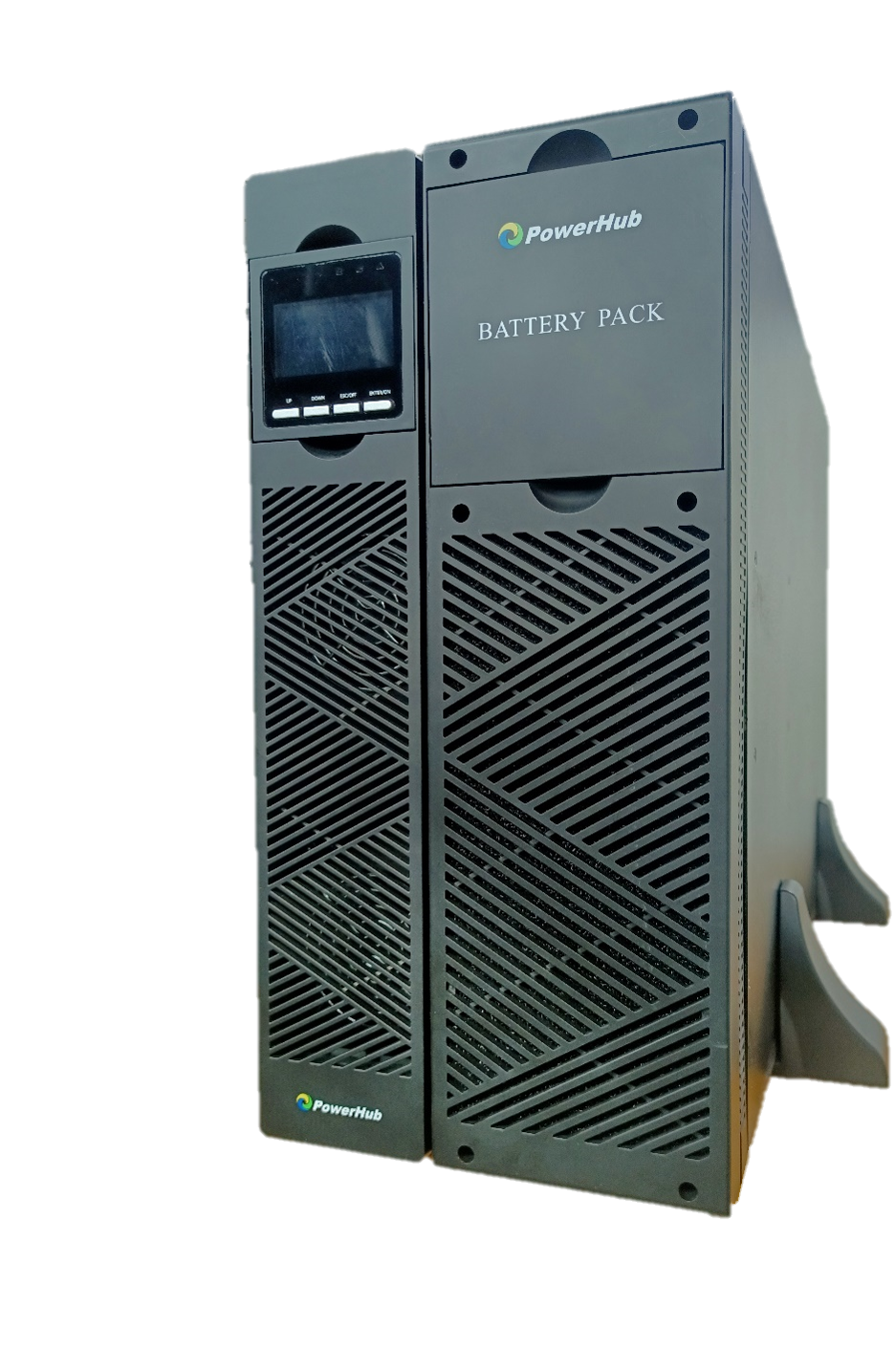

Elite IV RT UPS Rack/Tower Convertible (6KVA to 10KVA) New

The ELITE IV RT UPS series offers an ideal solution for safeguarding various equipment, including servers, industrial machinery, IT devices, communication systems, and networking equipment. With its comprehensive range of protective features, such as overload, low battery, abnormal AC input, short-circuit, and over-temperature protection, the Elite IV RT UPS ensures the highest level of protection for critical systems against common power issues.

Download Technical Specification Enquire Now

Description

This UPS is particularly well-suited for applications in the finance, communications, medical, industrial, and enterprise sectors. It guarantees uninterrupted power supply during outages, providing pure sine wave output. As a result, connected devices receive high-quality electrical input, ensuring smooth operation and reliable performance even in the event of a power disruption. The Elite IV RT series serves as an ideal power protection solution for a wide range of critical applications.

  • Rack/Tower Convertible
  • Online Double Conversion with DSP Control
  • Flexible System Parallel N+X Configuration
  • Rotatable LCD Display with Multi-function Parameter Settings
  • Hot Swappable Battery
  • Low Input Current Distortion
  • Green Concept Design with Superior Input Voltage Window for Energy Saving
  • Estimated Remaining Time Displayed on the LCD.
  • Support Economic (ECO) Operation Mode
  • Fan Speed Control
  • Matching Battery Pack with Powerful Built-in Charger
  • Common Battery When UPS is in Parallel Mode
  • Versatile Communication Interfaces Available
  • Communication Software
  • Optional Centralized Monitor Function
  • Settable Charge Current. Built-in Powerful Charger can be automatically set from 1A to 10A
  • Power Rating: 6000 to 10000VA
  • Power Factor: 1.0
  • Voltage: 220-240 Vac
  • Frequency: 50/60 Hz (auto sensing)
  • THDv: ≤2% Linear load, ≤5% Non linear load/li>
  • Efficiency up to 94%
  • Configuration: Rack/Tower Convertible Design
  • IEC62040-1, IEC62040-2, and IEC62040-3 Compliance
  • Internal or External SNMP Card (Optional)
  • Relay Card (Optional)
  • External Environmental Probe (Optional)

Elite IV RT 6KVA (Using VRLA Batteries)

Move your mouse over the chart to see the runtime at any load.
Configuration10%20%30%40%50%60%70%80%90%100%
UPS (Ext)N/AN/AN/AN/AN/AN/AN/AN/AN/AN/A
UPS (Ext) + 1 EBP95 min51 min35 min25 min19 min15 min12 min9 min7 min6 min
UPS (Ext) + 2 EBPs318 min142 min87 min61 min46 min36 min31 min25 min22 min19 min
UPS (Ext) + 3 EBPs494 min237 min145 min102 min78 min60 min51 min41 min36 min31 min
UPS (Ext) + 4 EBPs682 min346 min207 min145 min112 min86 min73 min59 min51 min44 min

Elite IV RT 10KVA (Using VRLA Batteries)

Move your mouse over the chart to see the runtime at any load.
Configuration10%20%30%40%50%60%70%80%90%100%
UPS (Ext)N/AN/AN/AN/AN/AN/AN/AN/AN/AN/A
UPS (Ext) + 1 EBP71 min31 min19 min13 min9 min6 min5 min4 min4 min3 min
UPS (Ext) + 2 EBPs169 min74 min45 min32 min25 min19 min16 min13 min11 min9 min
UPS (Ext) + 3 EBPs280 min122 min76 min53 min41 min31 min26 min22 min19 min16 min
UPS (Ext) + 4 EBPs402 min174 min110 min76 min58 min45 min38 min32 min27 min24 min

Runtime figures are typical battery backup times in minutes at the stated load. EBP = External Battery Pack.

Disclaimer: The runtime durations shown above are for reference only. Actual battery backup time may vary depending on the environment in which the UPS is installed, including ambient temperature, battery age and condition, and other site-specific factors.
