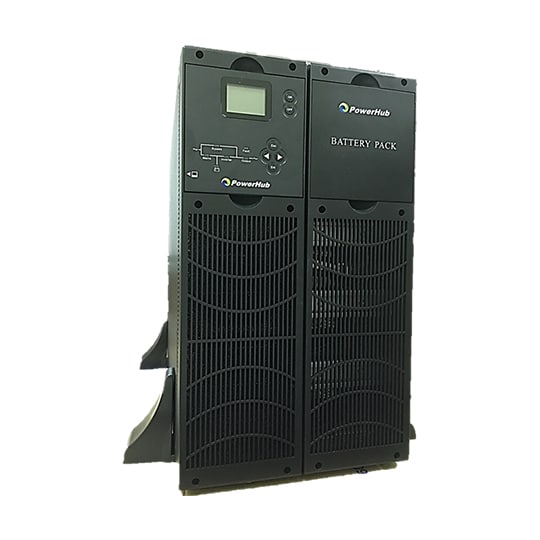

Elite II RT UPS Rack/Tower Convertible (6000 to 10000 VA)

The PowerHub Elite II RT UPS  is a Parallel Redundancy on-line series that has many great features. It is an ideal power protection solution that is mostly used in the finance, communications, medical, industrial and enterprises sector.

Download Technical Specification Enquire Now

Description

It provides pure sine wave output during battery operation which will result in high quality electrical input for your connected devices as well as ensuring smooth operation in the event of power outage.

Armed with overload, low battery, abnormal AC input, short-circuit and over temperature protection capabilities, the Elite II RT UPS has all it takes to guard your equipment from common power problems.

  • Rack/Tower Convertible
  • Online Double Conversion with DSP Control
  • Flexible System Parallel N+X Configuration
  • Rotatable LCD Display with Multi-function Parameter Settings
  • Hot Swappable Battery
  • Low Input Current Distortion
  • Green Concept Design with Superior Input Voltage Window for Energy Saving
  • Estimated Remaining Time Displayed on the LCD.
  • Support Economic (ECO) Operation Mode
  • Fan Speed Control
  • Matching Battery Pack with Powerful Built-in Charger
  • Common Battery When UPS is in Parallel Mode
  • Versatile Communication Interfaces Available
  • Communication Software
  • Optional Centralized Monitor Function
  • Settable Charge Current. Built-in Powerful Charger can be automatically set from 1A to 10A
  • Power Rating: 6000 to 10000VA
  • Power Factor: 0.9
  • Voltage: 220-240 Vac
  • Frequency: 50/60 Hz (auto sensing)
  • Efficiency up to 93.5%
  • Configuration: Rack/Tower Convertible Design
  • IEC62040-1, IEC62040-2, and IEC62040-3 Compliance
  • Internal or External SNMP Card (Optional)
  • Relay Card (Optional)
  • External Environmental Probe (Optional)

Related Information

What is single phase UPS?
APECUS provides a range of single-phase UPS solutions that are specifically designed to provide small scale critical power protection for a wide range of applications, such as computers, small/mid-size server rooms, IT networks, telecommunication systems, CCTV and medical equipment.
What is Double Conversion UPS?
The online UPS is ideal for environments where electrical isolation is necessary or for equipment that is very sensitive to power fluctuations. The initial cost of the online UPS may be slightly higher, but its total cost of ownership is generally lower due to longer battery life. The online UPS may be necessary when the power environment is “noisy”, when utility power sags, outages and other anomalies are frequent. This is extremely important when protection of sensitive IT equipment loads is required, or when operation from an extended-run backup generator is necessary.
The basic technology of the online UPS is the same as in a standby or line-interactive UPS. However it typically costs much more, due to it having a much greater current AC-to-DC battery-charger/rectifier, and with the rectifier and inverter designed to run continuously with improved cooling systems. It is called a double-conversion UPS due to the rectifier directly driving the inverter, even when powered from normal AC current.

In an online UPS, the batteries are always connected to the inverter, so that no power transfer switches are necessary.
When power loss occurs, the rectifier simply drops out of the circuit and the batteries keep the power steady and unchanged.
When power is restored, normal operation resumes and the rectifier continues to carry the electrical load and begins charging the batteries. The main advantage to the on-line UPS is its ability to provide an ‘electrical firewall’ between the incoming utility power and sensitive electronic equipment.
