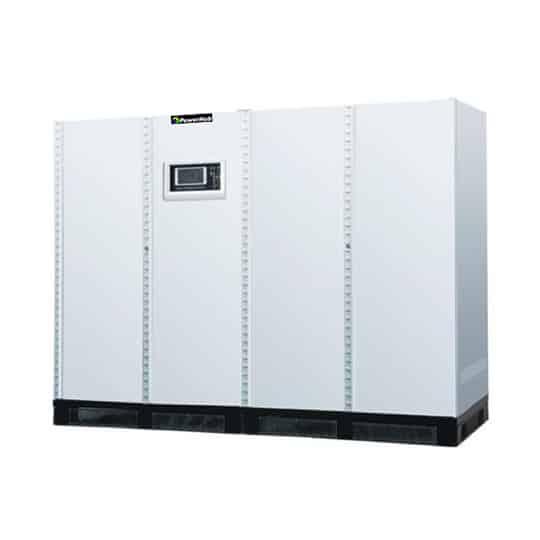

HubPro Industrial & Marine UPS (10-800kVA)

HUBPRO industrial UPS series adopt advanced DSP control technology and IGBT inverter, the input power factor is extremely high to meet users requirement of the new generation of green power.

Download Technical Specification Enquire Now

Description

It provides full protection in the fields of electricity, petroleum, chemical engineering, marine engineering, military engineering, rail transit & manufacturing. The product delivers high stability and reliability of industry frequency UPS.

  • Active power factor correction technology with extremely high input power factor;
  • Independent 3-phase inverter design, fully meets the requirement of 100% unbalanced load;
  • Adoption of DSP control technology, power redundancy design to achieve higher performance and adaptability;
  • Adoption of high-resolution touch screen for better operation and maintenance;
  • Application of isolated air duct system, independent duct for power circuit and control circuit respectively to ensure effective cooling;
  • Application of 3-stage equalized charging with temperature compensation at the same time to increase the reliability of battery availability;
  • Adoption of N+X non-master-slave self-adaptive parallel technology to achieve multiple parallel operations;
  • With DC cold start function, battery test, and battery intelligent anti-reverse technology;
  • User-friendly operational design with a simple operating sequence and usage;
  • With RS232/RS485 Ethernet connection port, support NSNMP/MODBUS/JBUS/Remote monitoring.
  • Power Rating: 10KVA to 800VA
  • Power Factor: 0.8
  • Voltage: 380-415 Vac
  • Frequency: 50/60 Hz (auto sensing)
  • Efficiency up to 92%
  • Configuration: Tower
  • IEC62040-1 and IEC62040-2 Compliance
  • Internal or External SNMP Card (Optional)
  • Ship Classification Compliance (Optional)
  • Relay Card (Optional)
  • External Environmental Probe (Optional)

Related Information

What is Marine/Offshore UPS
The increasing amount of new technology installed on board presents a whole new set of challenges to the electrical power supply of a vessel or a rig. Today’s sophisticated high technology equipment can fail to do its work or even get damaged if the input power has disturbances or breaks down completely. That is why power systems that supply un-interruptible and clean power are essential on board. These systems are called Un-interruptible Power Systems or UPS systems.

The equipment that needs power protection can be roughly divided into:
  • Safety and cruising related systems, such as navigation equipment and emergency lighting. Classification organisations normally require UPS protection for these systems.
  • Commercial applications, such as casinos and EPOS devises at restaurants and shops. Customer satisfaction depends on the smooth operation of these systems.
  • Special systems on board special vessels. Exploring, drilling, lifting, and cable laying, for example, is accurate and sensitive work where mistakes cannot be tolerated.
  • Business and management support, such as computer systems that enable continuous business management.


APECUS marine UPSs are designed to meet the most stringent industry standards. The double-conversion online topology with a static bypass switch is APECUS’s choice for industrial and marine use. This protects against all types of power disturbances that may occur in the supplying network and is the only topology that meets the highest performance class, VFI-SS-111, requirements. All APECUS UPSs are tested and certified to meet appropriate safety and EMC standards.

APECUS UPSs are built into one cabinet that houses all the electronics: the rectifier, the inverter, the static bypass and the microprocessor control. This configuration allows the entire system to be controlled as one integral device. This leads to higher reliability than using separate power converters. It also saves plenty of valuable space.
