Description

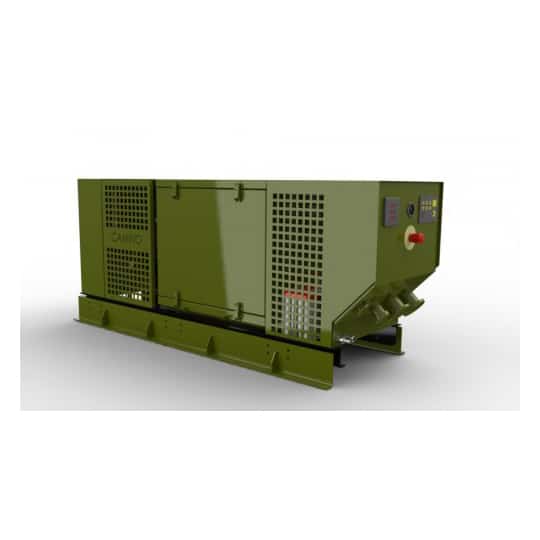

The Camino DST / DSTMIL has a frame on which components such as the generator are mounted. The Camino Tunnel can be integrated in the container or used as stand-alone unit.
The system can be optionally retrofitted with drawer runners.
Camino Tunnel Series
Utility compartments in containers or vehicles are usually limited in terms of space.
A lot of room for the application, but very little for technology.
Standard equipment Features
Safety devices
- Super sound capsule; all filters at one maintenance side
- Asynchronous generator, short circuit proof, water-cooled, and suitable for unbalanced load
- Cooled exhaust system in the enclosure
- Exhaust silencer with high attenuation
- Cooling unit with circulation pumps and 230V fans with speed controller
- Fuel tank 80-120l
- Basic control panel with key switch
- Electronical engine management with battery charger and automatic shutdown when: oil pressure too low, high temperature, water loss
- Computer-optimized arrangement of the anti-vibration shock mounts, 4g in all directions
- Socked IP 67 mil 1x Socket outlet 16A 230V 2P + E 1x CEE 400V 5-pin
Safety devices
- 1x MCB 16 A (B) 1P
- 1x MCB 16 -63 A (C) 3P
- 1x RCD 30-63, 03A, 4P
- External start 24V socket to VG
- Quiet operation 56 dB(A) @7m
- Colour RAL 6031 green bronze
- Operating condition -32 °C / + 50 °C
- Storage temperature -40 °C / + 70 °C
- EMC to VG95373 class3
- Industry documentation
