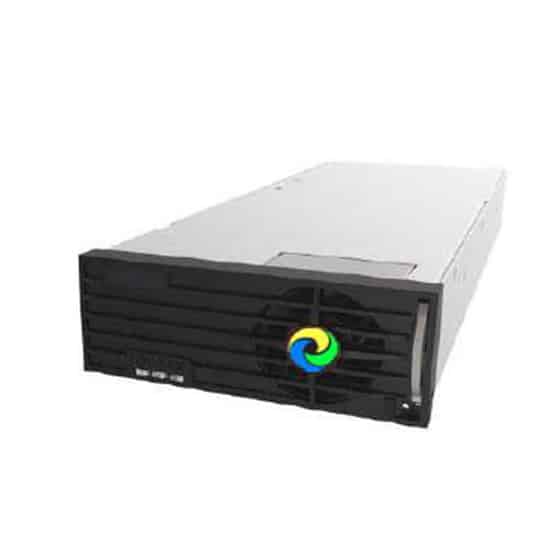

FlexCombi Inverter Module

FlexCombi 1250 Inverter Module is designed with advanced switching technology and digital control. The utilization of this technology results in a very high power density and low weight. With a state-ofthe-art control solution it provides an excellent functionality and several protection features.

Product Highlights:

  • Excellent overall efficiency and high regulation speed
  • Hot-Swappable Design with backplane connection
  • Perfect fault alarm and protection functions
  • High power density
  • CAN-BUS Interface
  • Temperature-controlled fan cooling
  • Excellent sinusoidal output
  • MTBF: 300,000 hours
  • Input Voltage: 48VDC
  • Output Voltage: 230VAC
  • Output Power: 1250VA at nominal output
  • Efficiency: 91%
  • MTBF: 300,000 hours
  • Operating Temperature: -40 to +55°C
  • Compatible Rectifier System (not included): FlexCombi 30/120 Rectifier Inverter System
