Camino Rack Series

Utility compartments in containers or vehicles are usually limited in terms of space.

A lot of room for the application, but very little for technology.

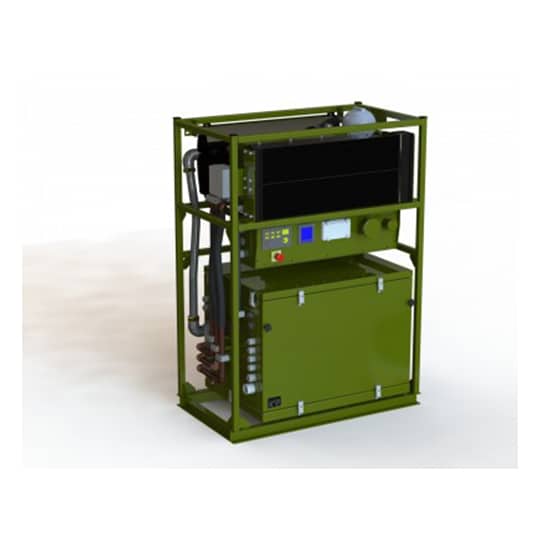

The Camino DSR / DSRMIL has a rack on which components such as the generator, noise suppressor, battery, control cabinet and cooler unit are mounted. A tank can be fitted optionally below.

Standard equipment Features

  • Super sound capsule; all filters at one maintenance side
  • Asynchronous generator, short circuit proof, water-cooled, and suitable for unbalanced load
  • Cooled exhaust system in the enclosure
  • Exhaust silencer with high attenuation
  • Cooling unit with circulation pumps and 230V fans with speed controller
  • Basic control panel with key switch
  • Basic control panel with key switch
  • Electronical engine management with battery charger and automatic shutdown when: oil pressure too low, high temperature, water loss
  • Computer-optimized arrangement of the anti-vibration shock mounts, 4g in all directions
  • Socked IP 67 mil 1x Socket outlet 16A 230V 2P + E 1x CEE 400V 5-pin

Safety devices

  • 1x MCB 16 A (B) 1P
  • 1x MCB 16 -63 A (C) 3P
  • 1x RCD 30-63, 03A, 4P
  • External start 24V socket to VG
  • Quiet operation 56 dB(A) @7m
  • Colour RAL 6031 green bronze
  • Operating condition -32 °C / + 50 °C
  • Storage temperature -40 °C / + 70 °C
  • EMC to VG95373 class3
  • Industry documentation
