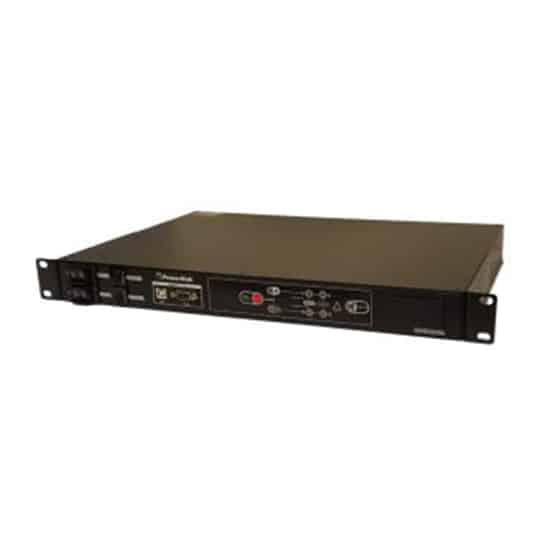

Automatic Transfer Switch (ATS) New!

  • 16A/30A, 220V-230V ATS
  • Visual Current/Voltage Meter
  • Auto-transfer between Primary and Secondary Power Sources
  • Short Transfer Time
  • LED Indicator for Power Status
  • 1U Horizontal Rack-mount Installation (Brackets)
  • Black Metal Alloy Housing
Model ATS 16-SSV ATS 30-SSV
Nominal Input Voltage 220/230/240 VAC, Single Phase
Maximum Input Current 16A 30A
Input Receptacles 2 x IEC-C20 inlets 2 x Hardwired Terminal Blocks
Output Voltage 220/230/240 VAC
Output Receptacles 4 x IEC-C13 (10A) 4 x IEC-C13 (10A)
1 x IEC-C19 (16A) 1 x IEC-C19 (16A)
1 x Hardwired Terminal Block (30A)
Frequency 50/60Hz
LED Indicator 2 x LED for Input Power Status (A/B)
2 x LED for Output Power Status (A/B)
2 x LED for Preferred Power Source (A/B)
Transfer Time 9-12ms (Typical), 16ms max
